Exploring 5-Axis Rotary Tilting Tables: The Flexible Powerhouse of Modern Manufacturing

As modern manufacturing evolves, with increasingly complex and precise product designs, traditional machining techniques face growing challenges. To address these challenges, 5-axis rotary tables have emerged as a crucial piece of equipment for enhancing machining efficiency and flexibility. This article delves into the functions, applications, and impact of 5-axis rotary tilting tables on the manufacturing industry.

What is a 5 Axis Rotary Tilting Table?

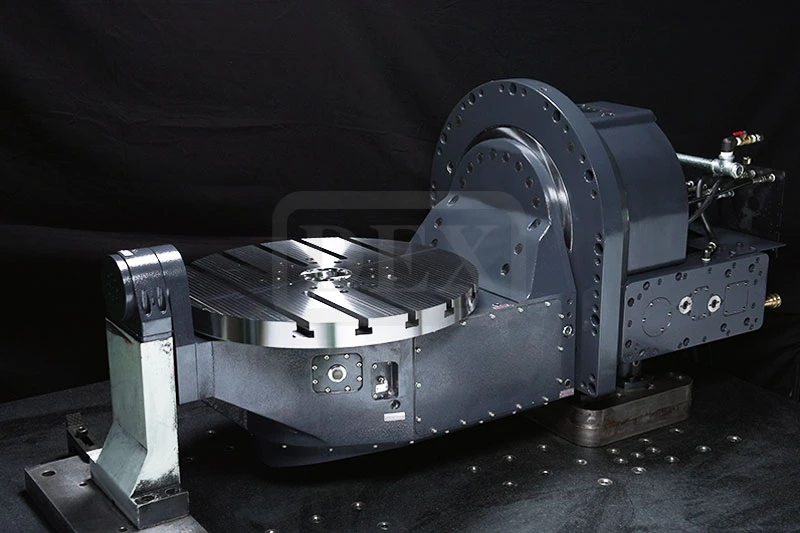

A 5 axis rotary table is a highly flexible machine accessory, typically mounted on CNC machines, that allows a workpiece to move freely across five axes. This design enables more precise and efficient machining of complex parts, especially those with multiple angles and curved surfaces. The 5-axis technology includes three traditional linear axes (X, Y, Z) and two additional rotary axes (A-axis and C-axis), allowing the workpiece to be machined from a variety of angles.

Key Features of 5 Axis Rotary Tilting Tables

1. Multi-Axis Interpolation: A 5 axis rotary table allows simultaneous control of five axes, enabling multi-angle machining operations in a single setup. This reduces the need for repetitive clamping, thereby increasing machining efficiency.
2. High Precision: With the ability to precisely control the tilt angle and rotation position of the workpiece, this table excels at machining complex shapes and intricate details.
3. Flexibility: The 5 axis rotary table technology significantly enhances the flexibility of CNC machines, enabling them to handle a wider variety of materials and shapes, thereby expanding their machining capabilities and application range.

Applications of 5 Axis Rotary Tilting Tables

5 axis rotary tables are widely used in industries that require high precision and complex machining:

1. Aerospace: When manufacturing aircraft components, many parts feature complex surfaces and angles, which the 5-axis table can efficiently handle.
2. Medical Devices: In the production of custom medical instruments and implants, 5 axis technology ensures high precision and ergonomic design.
3. Automotive Industry: This technology is used to machine engine parts, transmission systems, and other components requiring precise multi-angle machining.
4. Mold Making: When creating high-precision molds, the 5-axis table reduces the number of machining steps and ensures accuracy in every detail.

The 5-axis rotary tilting table, with its outstanding flexibility and high precision, has become an indispensable tool in modern manufacturing. Whether in aerospace, medical devices, or the automotive industry, this technology showcases its vast potential applications. For companies looking to improve their machining efficiency and quality, investing in a 5-axis rotary tilting table is a wise decision.

DEX’s newly introduced 4th and 5th axis rotary tables were developed by our excellent and experienced engineering team. We keep rigid standards throughout all the manufacturing processes and offer satisfactory after-sales services for customers all over the world. The positioning accuracy, structural rigidity, and lifespan of our products are as good as our competitors’ products from Europe, Japan, and the US. This is why so many manufacturers choose DEX products.
