4axis Rotary Tilting Tables

RD Series (R/L)

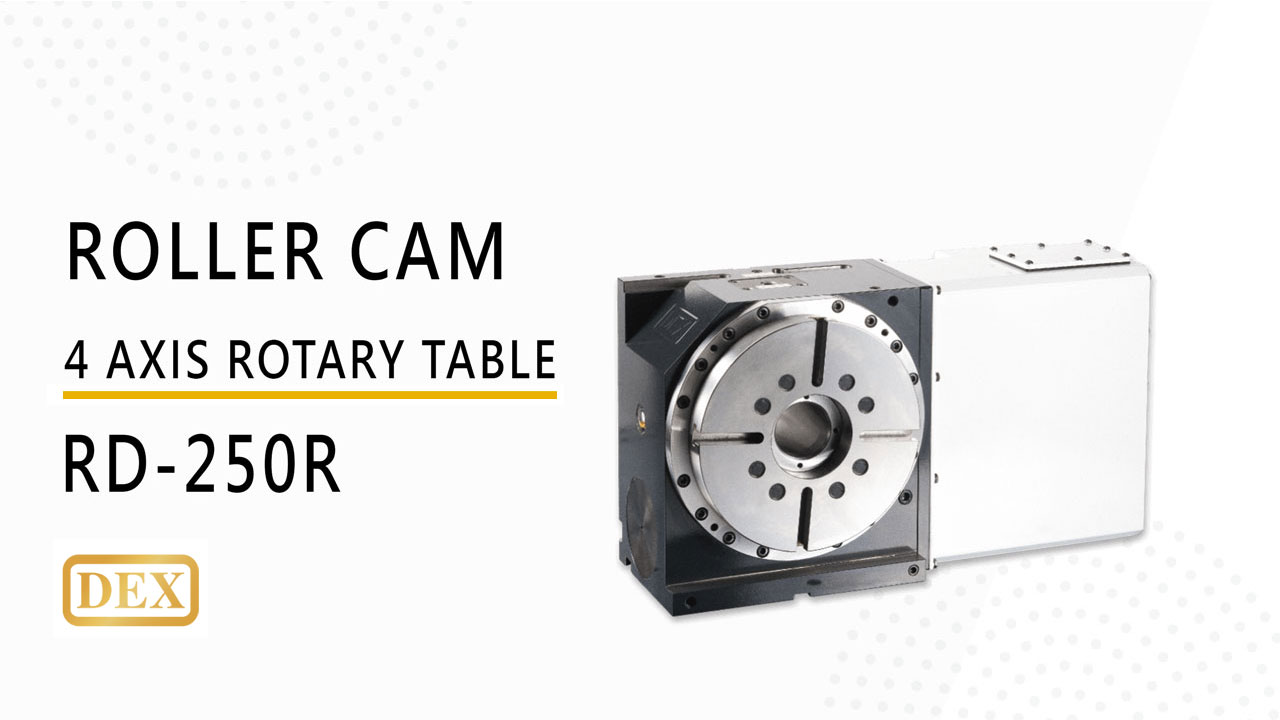

RD250R

DEX's RD Series (R/L) RD250R 4 axis rotary tilting tables , boasting a 250 mm table diameter and an 185 mm center height, offer remarkable precision across a broad spectrum of machining tasks. They feature a 90H7 front spindle hole, a 60H7 through-hole, and a 12H7 T-slot, ensuring secure workpiece clamping and precise positioning.

This motor driven rotary table is powered by high-performance servo motors from FANUC, Mitsubishi, and Siemens, providing exceptional motion control. With a gear ratio of 1/60 and a maximum speed of 50 rpm, it achieves precision with a minimum degree of 0.001° and an accuracy of 13 seconds.

These cnc rotary tables are the ideal choice for applications that demand precise and efficient rotary motion control, making them indispensable tools for machining tasks requiring top-tier accuracy and performance.

Specifications

ITEM		UNIT		RD250R
Table diameter		mm		250
Center height		mm		185
Center bore	Front spindle hole	mm		90H7
Center bore	Through hole	mm		60H7
T slot width		mm		12H7
Guide block width		mm(h7)		18h7
Servo Motor		FANUC	α	αiF8	□130
		FANUC	β	βiS8	□130
		Mitsubushi		HF-154T	□130
Motor interface		Siemens		1FK7063	□126
Gear ratio		--		1/60
Table max.		r.p.m.		50
Degree mini.		Degree		0.001
Accuracy		Second		13
Forward & Reverse repet.accuracy		Second		4
Allowable cutting torque		【kgf-m】		【55】
Allowable cutting torque		N-m		545
Clamp system		Pneumatic/ Hydraulic		Pneumatic/ Hydraulic
Clamp output at brake		kg-cm²		6/20
Clamp output torque at brake		【kgf-m】		【40/93】
Clamp output torque at brake		N-m		392/911
Allowable work weight	(Radial) Straight	kg		200
	(Tailstock applied)	kg		400
	(Axial) Flat	kg		400
Allowable load (table clamped)		F	Kgf	4300
		F	N	42140
		FxL	Kgf-m	【40/93】
		FxL	N-m	392/911
		FxL	Kgf-m	490
		FxL	N-m	4802
Weight		kg		126
Allowable inertia force		kg-m²		6.12
