ATC Systems

BT50 Series - Horizontal

BT505 - Horizontal-type

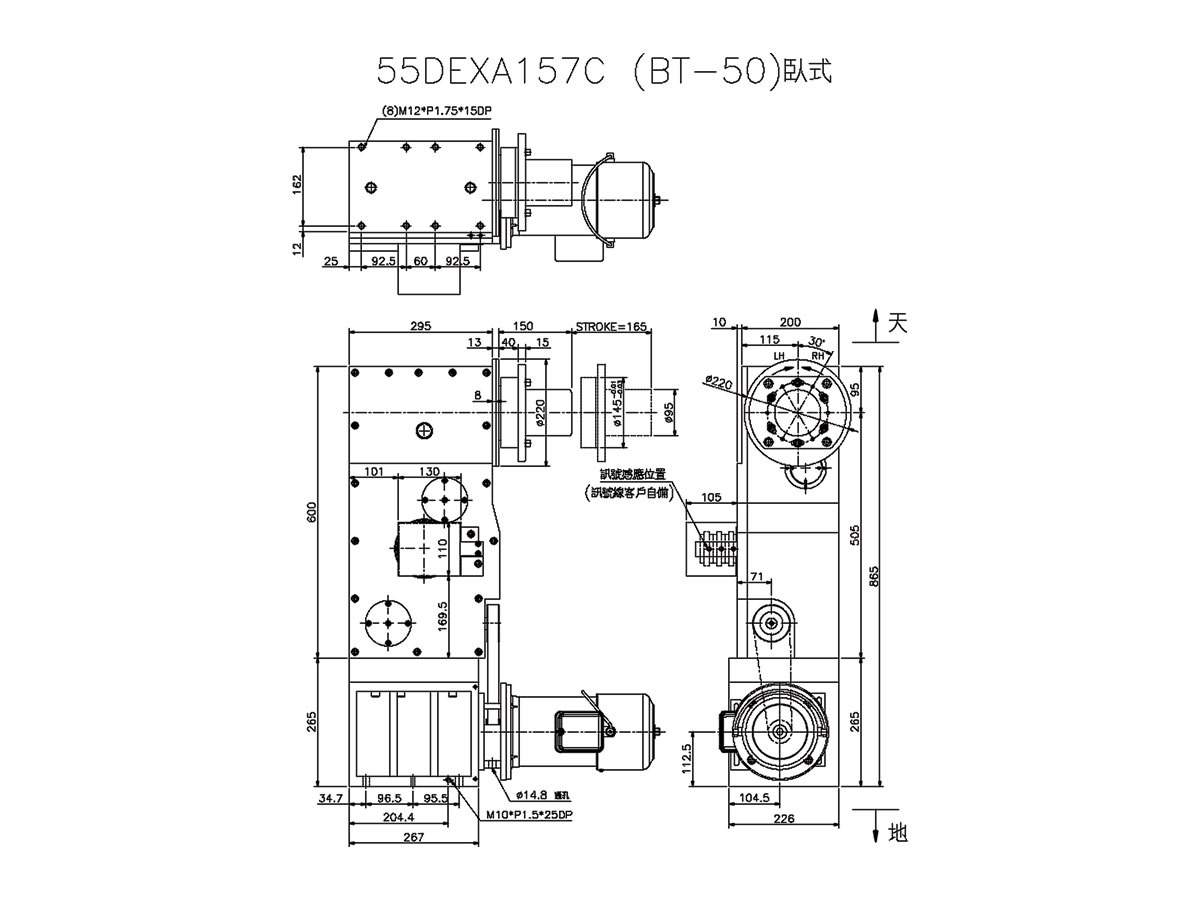

Outline Drawing

APB
Wheel Sensor

renishaw-acu250-r-asis-corrected

renishaw-acu250-r-asis-corrected

Video

video-a505-250208

ContRoller-Types

APB
Wheel Sensor

Part Number
Time Interval For Cutter	Please refer to the A505 speed ratio loading table
Tool Buckling Angles	60°~90°(based on customer requirements)
Cutter Pulling Strokechange	165mm-MAX(We can customize strokes according to different types of tool holders)
Maximum Loading	40kg
Signal Specifications	Decoder
Driving Horse Power	1.5HP
Weight Of The Product	250kg(with oil)
Accuracy	Overlapping accuracy 3" Horizontal Accuracy 0.2mm

Part Number	55DEXA157C (BT-50)-Horizontal
Time Interval For Cutter	Please refer to the A505 speed ratio loading table
Tool Buckling Angles	60°~90°(based on customer requirements)
Cutter Pulling Strokechange	165mm-MAX(We can customize strokes according to different types of tool holders)
Maximum Loading	40kg
Signal Specifications	Proximity Switch PNP-NOx3~4
Driving Horse Power	1.5HP
Weight Of The Product	250kg(with oil)
Accuracy	Overlapping accuracy 3" Horizontal Accuracy 0.2mm

Movement Timing Illustration

size-drawings-acu250-en-01

Angle for cutter change can be defined per customer's need (60°~ 90°)

top-view-drawing-acu250-02

We can customize strokes according to different types of tool holders

A505 Instant Loading Diagram

Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
15Kgx2	50Hz	38:45	2.45 sec
15Kgx2	60Hz	38:45	2.07 sec
20Kgx2	50Hz	38:45	2.45 sec
20Kgx2	60Hz	38:45	2.07 sec
25Kgx2	50Hz	38:45	2.45 sec
25Kgx2	60Hz	38:50	2.3 sec
30Kgx2	50Hz	38:45	2.45 sec
30Kgx2	60Hz	35:50	2.49 sec
35Kgx2	50Hz	38:50	2.72 sec
35Kgx2	60Hz	35:50	2.49 sec
40Kgx2	50Hz	38:50	2.72 sec
40Kgx2	60Hz	30:48	2.79 sec

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
15Kgx2	50Hz	38:45	2.45 sec
15Kgx2	60Hz	38:50	2.3 sec
20Kgx2	50Hz	38:45	2.45 sec
20Kgx2	60Hz	35:50	2.49 sec
25Kgx2	50Hz	38:50	2.72 sec
25Kgx2	60Hz	30:48	2.79 sec
30Kgx2	50Hz	38:50	2.72 sec
30Kgx2	60Hz	30:48	2.79 sec
35Kgx2	50Hz	35:50	2.96 sec
35Kgx2	60Hz	30:50	2.9 sec
40Kgx2	50Hz	30:48	3.31 sec
40Kgx2	60Hz	27:50	3.23 sec

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
15Kgx2	50Hz	38:50	2.72 sec
15Kgx2	60Hz	35:50	2.49 sec
20Kgx2	50Hz	38:50	2.72 sec
20Kgx2	60Hz	30:48	2.79 sec
25Kgx2	50Hz	35:50	2.96 sec
25Kgx2	60Hz	27:50	3.23 sec
30Kgx2	50Hz	30:48	3.31 sec
30Kgx2	60Hz	27:50	3.23 sec

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
15Kgx2	50Hz	35:50	2.96 sec
15Kgx2	60Hz	30:50	2.9 sec
20Kgx2	50Hz	30:48	3.31 sec
20Kgx2	60Hz	27:50	3.23 sec
25Kgx2	50Hz	30:50	3.45 sec
25Kgx2	60Hz	30:67	3.9 sec

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
15Kgx2	50Hz	30:48	3.31 sec
15Kgx2	60Hz	27:50	3.23 sec
20Kgx2	50Hz	30:50	3.45 sec
20Kgx2	60Hz	30:67	3.9 sec
25Kgx2	50Hz	27:50	3.83 sec
25Kgx2	60Hz	30:67	3.9 sec

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
15Kgx2	50Hz	30:50	3.45 sec
15Kgx2	60Hz	30:67	3.9 sec
20Kgx2	50Hz	27:50	3.83 sec
20Kgx2	60Hz	30:67	3.9 sec

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
15Kgx2	50Hz	27:50	3.83 sec
15Kgx2	60Hz	30:67	3.9 sec
20Kgx2	50Hz	27:50	3.83 sec
20Kgx2	60Hz	30:67	3.9 sec
