ATC Systems
BT30 Series
BT30# Standard-type
Outline Drawing
ContRoller-Types

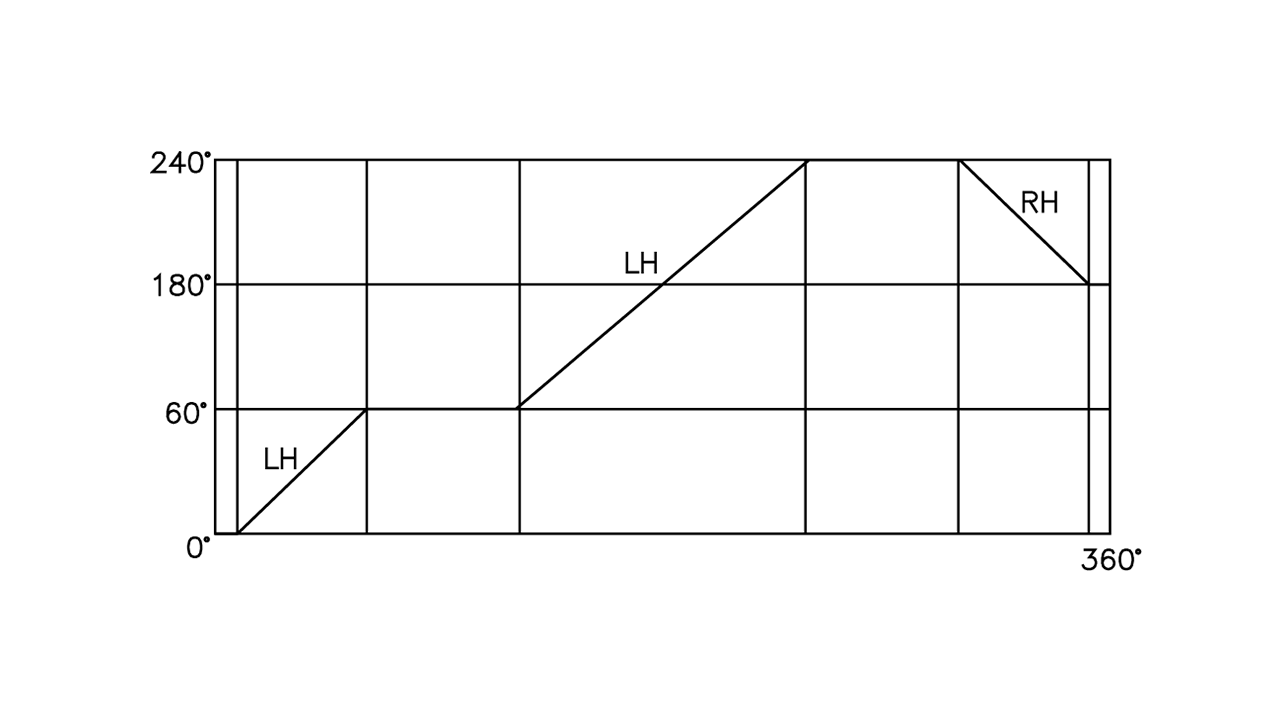

Movement Timing Illustration
Angle for cutter change can be defined per customer's need (60°~ 90°)
We can customize strokes according to different types of tool holders
A301 Instant Loading Diagram
Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight Unilateral Loading of Tool |
Motor Frequency | Compatible with 1/3HP motors |
ATC Time Interval For Cutter |
---|---|---|---|
1.5Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2.5Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
3Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
3.5Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
4Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec |
Tool Weight Unilateral Loading of Tool |
Motor Frequency | Compatible with 1/3HP motors |
ATC Time Interval For Cutter |
---|---|---|---|
1.5Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2.5Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
3Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 1.05 sec | |
3.5Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
4Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec |
Tool Weight Unilateral Loading of Tool |
Motor Frequency | Compatible with 1/3HP motors |
ATC Time Interval For Cutter |
---|---|---|---|
1.5Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2.5Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
3Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
3.5Kgx2 | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:10 | 1.05 sec | |
4Kgx2 | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:12 | 1.25 sec |
Tool Weight Unilateral Loading of Tool |
Motor Frequency | Compatible with 1/3HP motors |
ATC Time Interval For Cutter |
---|---|---|---|
1.5Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
2.5Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
3Kgx2 | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:10 | 1.05 sec | |
3.5Kgx2 | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:12 | 1.25 sec | |
4Kgx2 | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:12 | 1.25 sec |
Tool Weight Unilateral Loading of Tool |
Motor Frequency | Compatible with 1/3HP motors |
ATC Time Interval For Cutter |
---|---|---|---|
1.5Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
2.5Kgx2 | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:10 | 1.05 sec | |
3Kgx2 | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:12 | 1.25 sec | |
3.5Kgx2 | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:12 | 1.25 sec | |
4Kgx2 | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:12 | 1.25 sec |
Tool Weight Unilateral Loading of Tool |
Motor Frequency | Compatible with 1/3HP motors |
ATC Time Interval For Cutter |
---|---|---|---|
1.5Kgx2 | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
2Kgx2 | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:10 | 1.05 sec | |
2.5Kgx2 | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:12 | 1.25 sec | |
3Kgx2 | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:12 | 1.25 sec | |
3.5Kgx2 | 50Hz | 1:12 | 1.49 sec |
60Hz | 1:15 | 1.57 sec | |
4Kgx2 | 50Hz | 1:12 | 1.49 sec |
60Hz | 1:15 | 1.57 sec |
Tool Weight Unilateral Loading of Tool |
Motor Frequency | Compatible with 1/3HP motors |
ATC Time Interval For Cutter |
---|---|---|---|
1.5Kgx2 | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:10 | 1.05 sec | |
2Kgx2 | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:12 | 1.25 sec | |
2.5Kgx2 | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:12 | 1.25 sec | |
3Kgx2 | 50Hz | 1:12 | 1.49 sec |
60Hz | 1:15 | 1.57 sec | |
3.5Kgx2 | 50Hz | 1:12 | 1.49 sec |
60Hz | 1:15 | 1.57 sec | |
4Kgx2 | 50Hz | 1:12 | 1.49 sec |
60Hz | 1:15 | 1.57 sec |
Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight Unilateral Loading of Tool |
Motor Frequency | Compatible with 1/3HP motors |
ATC Time Interval For Cutter |
---|---|---|---|
1.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
3Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
3.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
4Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec |
Tool Weight Unilateral Loading of Tool |
Motor Frequency | Compatible with 1/3HP motors |
ATC Time Interval For Cutter |
---|---|---|---|
1.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
3Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
3.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
4Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec |
Tool Weight Unilateral Loading of Tool |
Motor Frequency | Compatible with 1/3HP motors |
ATC Time Interval For Cutter |
---|---|---|---|
1.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
3Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
3.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
4Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec |
Tool Weight Unilateral Loading of Tool |
Motor Frequency | Compatible with 1/3HP motors |
ATC Time Interval For Cutter |
---|---|---|---|
1.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
3Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
3.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
4Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec |
Tool Weight Unilateral Loading of Tool |
Motor Frequency | Compatible with 1/3HP motors |
ATC Time Interval For Cutter |
---|---|---|---|
1.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
3Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
3.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
4Kg | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:10 | 1.05 sec |
Tool Weight Unilateral Loading of Tool |
Motor Frequency | Compatible with 1/3HP motors |
ATC Time Interval For Cutter |
---|---|---|---|
1.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:8 | 0.84 sec | |
2Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
2.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
3Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
3.5Kg | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:10 | 1.05 sec | |
4Kg | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:12 | 1.25 sec |
Tool Weight Unilateral Loading of Tool |
Motor Frequency | Compatible with 1/3HP motors |
ATC Time Interval For Cutter |
---|---|---|---|
1.5Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
2Kg | 50Hz | 1:8 | 0.99 sec |
60Hz | 1:10 | 1.05 sec | |
2.5Kg | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:10 | 1.05 sec | |
3Kg | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:12 | 1.25 sec | |
3.5Kg | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:12 | 1.25 sec | |
4Kg | 50Hz | 1:10 | 1.24 sec |
60Hz | 1:12 | 1.25 sec |
