ATC Systems

BT50 Series

BT50# Standard-type

Outline Drawing

renishaw-acu250-r-asis-corrected

renishaw-acu250-r-asis-corrected

renishaw-acu250-r-asis-corrected

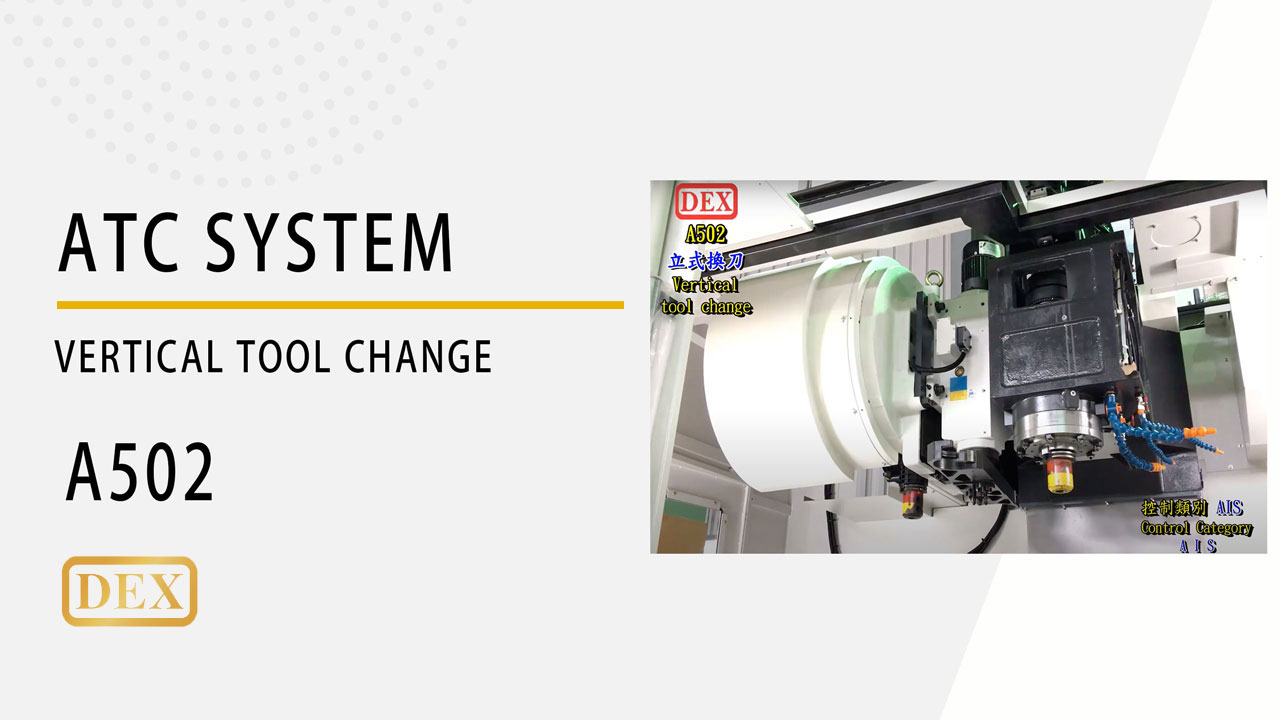

Video

ContRoller-Types

Part Number	52DEXG004A (BT-50 Sensor Motor AIS)-Magazine on the left side
(T to T)Duration	1.95~2.15sec(10kg)
Tool Buckling Angles	60°~90°(based on customer requirements)
Cutter Pulling Strokechange	165mm-MAX(We can customize strokes according to different types of tool holders)
Maximum Loading	30kg (Please contact the DEX sales team for more details)
Signal Specifications	Decoder
Driving Horse Power	1.5HP
Weight Of The Product	200kg
Accuracy	Overlapping accuracy 3" Horizontal Accuracy 0.2mm
Characteristics	AIS Smart Control is equipped with multiple control modes, achieving greater flexibility. Sensor motor can be integrated for tool magazine controlling. A single drive controls both, the ATC and the magazine.

Part Number	52DEXG003A (BT-50 Semi-Systematic APB)-Magazine on the left side
Time Interval For Cutter	Please refer to the A502 speed ratio loading table
Tool Buckling Angles	60°~90°(based on customer requirements)
Cutter Pulling Strokechange	165mm-MAX(We can customize strokes according to different types of tool holders)
Maximum Loading	30kg
Signal Specifications	Decoder
Driving Horse Power	1.5HP
Weight Of The Product	200kg
Accuracy	Overlapping accuracy 3" Horizontal Accuracy 0.2mm

Part Number	52DEXA001A (BT-50)-Magazine on the left side
Time Interval For Cutter	Please refer to the A502 speed ratio loading table
Tool Buckling Angles	60°~90°(based on customer requirements)
Cutter Pulling Strokechange	165mm-MAX(We can customize strokes according to different types of tool holders)
Maximum Loading	30kg (Please refer to the A502 speed ratio loading table)
Signal Specifications	Proximity Switch PNP-NOx3~4
Driving Horse Power	1.5HP
Weight Of The Product	200kg
Accuracy	Overlapping accuracy 3" Horizontal Accuracy 0.2mm

Movement Timing Illustration

size-drawings-acu250-en-01

Angle for cutter change can be defined per customer's need (60°~ 90°)

top-view-drawing-acu250-02

We can customize strokes according to different types of tool holders

A502 Instant Loading Diagram

Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
10Kgx2	50Hz	41:48	2.91 sec
10Kgx2	60Hz	41:48	2.45 sec
15Kgx2	50Hz	41:48	2.91 sec
15Kgx2	60Hz	41:48	2.45 sec
20Kgx2	50Hz	41:48	2.91 sec
20Kgx2	60Hz	41:48	2.45 sec
25Kgx2	50Hz	41:48	2.91 sec
25Kgx2	60Hz	41:48	2.45 sec
30Kgx2	50Hz	41:48	2.91 sec
30Kgx2	60Hz	41:48	2.45 sec

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
10Kgx2	50Hz	41:48	2.91 sec
10Kgx2	60Hz	41:48	2.45 sec
15Kgx2	50Hz	41:48	2.91 sec
15Kgx2	60Hz	41:48	2.45 sec
20Kgx2	50Hz	41:48	2.91 sec
20Kgx2	60Hz	41:48	2.45 sec
25Kgx2	50Hz	41:48	2.91 sec
25Kgx2	60Hz	41:48	2.45 sec
30Kgx2	50Hz	41:48	2.91 sec
30Kgx2	60Hz	38:50	2.75 sec

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
10Kgx2	50Hz	41:48	2.91 sec
10Kgx2	60Hz	41:48	2.45 sec
15Kgx2	50Hz	41:48	2.91 sec
15Kgx2	60Hz	41:48	2.45 sec
20Kgx2	50Hz	41:48	2.91 sec
20Kgx2	60Hz	41:48	2.45 sec
25Kgx2	50Hz	41:48	2.91 sec
25Kgx2	60Hz	41:48	2.45 sec
30Kgx2	50Hz	41:48	2.91 sec
30Kgx2	60Hz	38:50	2.75 sec

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
10Kgx2	50Hz	41:48	2.91 sec
10Kgx2	60Hz	41:48	2.45 sec
15Kgx2	50Hz	41:48	2.91 sec
15Kgx2	60Hz	41:48	2.45 sec
20Kgx2	50Hz	41:48	2.91 sec
20Kgx2	60Hz	41:48	2.45 sec
25Kgx2	50Hz	41:48	2.91 sec
25Kgx2	60Hz	38:50	2.75 sec
30Kgx2	50Hz	41:48	2.91 sec
30Kgx2	60Hz	38:50	2.75 sec

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
10Kgx2	50Hz	41:48	2.91 sec
10Kgx2	60Hz	41:48	2.45 sec
15Kgx2	50Hz	41:48	2.91 sec
15Kgx2	60Hz	41:48	2.45 sec
20Kgx2	50Hz	41:48	2.91 sec
20Kgx2	60Hz	38:50	2.75 sec
25Kgx2	50Hz	41:48	2.91 sec
25Kgx2	60Hz	35:50	2.99 sec
30Kgx2	50Hz	38:50	3.27 sec
30Kgx2	60Hz	35:53	3.17 sec

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
10Kgx2	50Hz	41:48	2.91 sec
10Kgx2	60Hz	41:48	2.45 sec
15Kgx2	50Hz	41:48	2.91 sec
15Kgx2	60Hz	38:50	2.75 sec
20Kgx2	50Hz	38:50	3.27 sec
20Kgx2	60Hz	35:50	2.99 sec
25Kgx2	50Hz	38:50	3.27 sec
25Kgx2	60Hz	30:53	3.7 sec
30Kgx2	50Hz	35:50	3.55 sec
30Kgx2	60Hz	30:53	3.7 sec

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
10Kgx2	50Hz	41:48	2.91 sec
10Kgx2	60Hz	38:50	2.75 sec
15Kgx2	50Hz	41:48	2.91 sec
15Kgx2	60Hz	35:50	2.99 sec
20Kgx2	50Hz	38:53	3.27 sec
20Kgx2	60Hz	35:53	3.17 sec
25Kgx2	50Hz	35:50	3.55 sec
25Kgx2	60Hz	30:53	3.7 sec
30Kgx2	50Hz	35:53	3.76 sec
30Kgx2	60Hz	35:67	4.01 sec

Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
10Kgx2	50Hz	41:48	2.91 sec
10Kgx2	60Hz	38:50	2.75 sec
15Kgx2	50Hz	38:50	3.27 sec
15Kgx2	60Hz	35:53	3.17 sec
20Kgx2	50Hz	35:50	3.55 sec
20Kgx2	60Hz	35:53	3.7 sec
25Kgx2	50Hz	35:53	3.76 sec
25Kgx2	60Hz	30:53	3.7 sec
30Kgx2	50Hz	35:53	4.39 sec
30Kgx2	60Hz	30:67	4.01 sec

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
10Kgx2	50Hz	41:48	2.91 sec
10Kgx2	60Hz	35:50	2.99 sec
15Kgx2	50Hz	38:50	3.27 sec
15Kgx2	60Hz	30:53	3.7 sec
20Kgx2	50Hz	35:53	3.76 sec
20Kgx2	60Hz	30:53	3.7 sec
25Kgx2	50Hz	30:53	4.39 sec
25Kgx2	60Hz	35:67	4.01 sec
30Kgx2	50Hz	30:53	4.39 sec

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1.5HP	ATC Time Interval For Cutter
10Kgx2	50Hz	38:50	3.27 sec
10Kgx2	60Hz	35:50	2.99 sec
15Kgx2	50Hz	35:53	3.76 sec
15Kgx2	60Hz	30:53	3.7 sec
20Kgx2	50Hz	30:53	4.39 sec
20Kgx2	60Hz	35:67	4.01 sec
25Kgx2	50Hz	30:53	4.39 sec
