07-bt407-horizontal

ATC Systems

BT40 Series - Horizontal

A407 - Opposite Tool Change

Outline Drawing

renishaw-acu250-r-asis-corrected
renishaw-acu250-r-asis-corrected
renishaw-acu250-r-asis-corrected

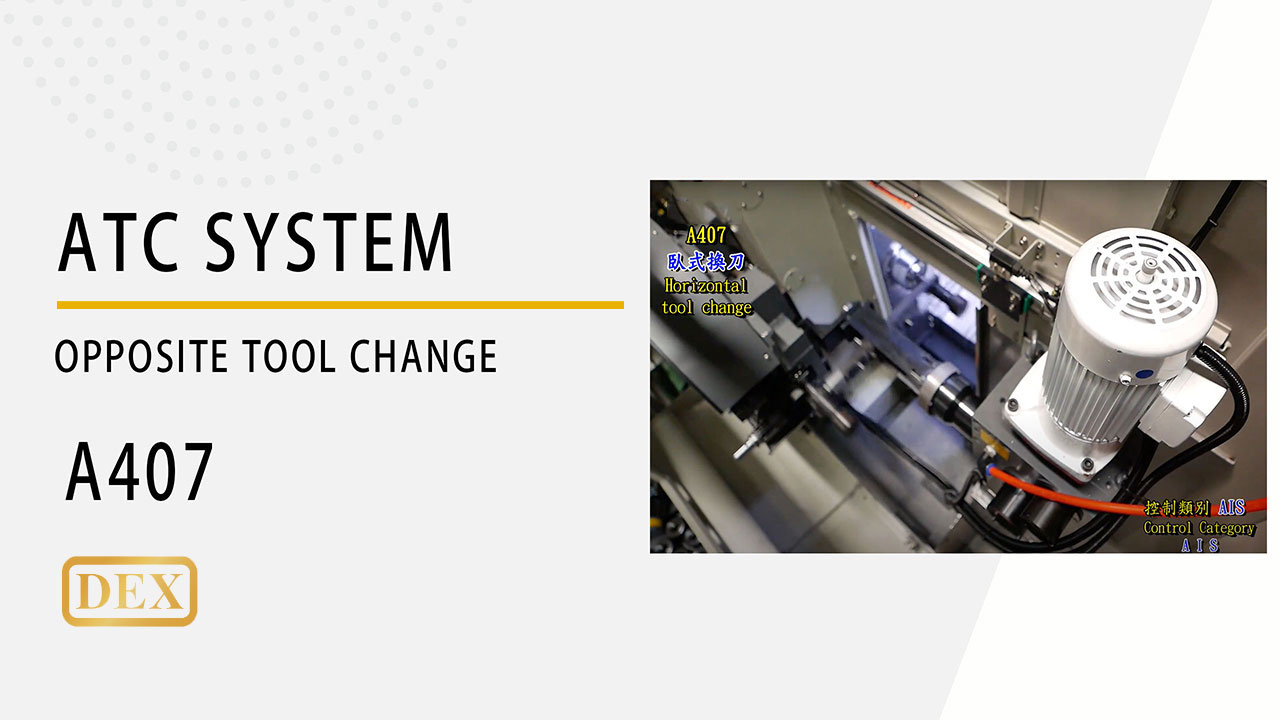

Video

video-a407

ContRoller-Types

Part Number 47DEXG656B (BT-40) Sensor Motor AIS
Time Interval For Cutter 1.5sec(6kg/side)
Tool Buckling Angles 60°~90°(based on customer requirements)
Cutter Pulling Strokechange 115mm-MAX(We can customize strokes according to different types of tool holders)
Maximum Loading 8kg
Signal Specifications Proximity Switch PNP-NOx3~4
Driving Horse Power 1HP
Weight Of The Product 120kg(with oil)
Accuracy

Overlapping accuracy 3"

Horizontal Accuracy 0.2mm

Movement Timing Illustration

AIS

size-drawings-acu250-en-01

Angle for cutter change can be defined per customer's need (60°~ 90°)

top-view-drawing-acu250-02

We can customize strokes according to different types of tool holders



Wheel Sensor

size-drawings-acu250-en-01

Angle for cutter change can be defined per customer's need (60°~ 90°)

top-view-drawing-acu250-02

We can customize strokes according to different types of tool holders



A407 Instant Loading Diagram

Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Compatible with
1 HP motors		 ATC Time Interval
For Cutter
4Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
5Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
6Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
7Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
8Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Compatible with
1 HP motors		 ATC Time Interval
For Cutter
4Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
5Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
6Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
7Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
8Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Compatible with
1 HP motors		 ATC Time Interval
For Cutter
4Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
5Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
6Kg*2 50Hz 1:7 1.36 sec
60Hz 1:8 1.31 sec
7Kg*2 50Hz 1:7 1.36 sec
60Hz 1:8 1.31 sec
8Kg*2 50Hz 1:7 1.36 sec
60Hz 1:8 1.31 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Compatible with
1 HP motors		 ATC Time Interval
For Cutter
4Kg*2 50Hz 1:7 1.36 sec
60Hz 1:8 1.31 sec
5Kg*2 50Hz 1:7 1.36 sec
60Hz 1:8 1.31 sec
6Kg*2 50Hz 1:7 1.36 sec
60Hz 1:8 1.31 sec
7Kg*2 50Hz 1:7 1.36 sec
60Hz 1:9 1.47 sec
8Kg*2 50Hz 1:8 1.55 sec
60Hz 1:9 1.47 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Compatible with
1 HP motors		 ATC Time Interval
For Cutter
4Kg*2 50Hz 1:7 1.36 sec
60Hz 1:8 1.31 sec
5Kg*2 50Hz 1:7 1.36 sec
60Hz 1:9 1.47 sec
6Kg*2 50Hz 1:8 1.55 sec
60Hz 1:9 1.47 sec
7Kg*2 50Hz 1:8 1.55 sec
60Hz 1:10 1.64 sec
8Kg*2 50Hz 1:8 1.55 sec
60Hz 1:10 1.64 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Compatible with
1 HP motors		 ATC Time Interval
For Cutter
4Kg*2 50Hz 1:8 1.55 sec
60Hz 1:9 1.47 sec
5Kg*2 50Hz 1:8 1.55 sec
60Hz 1:9 1.47 sec
6Kg*2 50Hz 1:8 1.55 sec
60Hz 1:10 1.64 sec
7Kg*2 50Hz 1:9 1.75 sec
60Hz 1:10 1.64 sec
8Kg*2 50Hz 1:9 1.75 sec
60Hz 1:12 1.96 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Compatible with
1 HP motors		 ATC Time Interval
For Cutter
4Kg*2 50Hz 1:8 1.55 sec
60Hz 1:10 1.64 sec
5Kg*2 50Hz 1:9 1.75 sec
60Hz 1:10 1.64 sec
6Kg*2 50Hz 1:9 1.75 sec
60Hz 1:12 1.96 sec
7Kg*2 50Hz 1:10 1.94 sec
60Hz 1:12 1.96 sec
8Kg*2 50Hz 1:10 1.94 sec
60Hz 1:12 1.96 sec
Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Compatible with
1 HP motors		 ATC Time Interval
For Cutter
4Kg*2 50Hz 1:9 1.75 sec
60Hz 1:10 1.64 sec
5Kg*2 50Hz 1:9 1.75 sec
60Hz 1:12 1.96 sec
6Kg*2 50Hz 1:10 1.94 sec
60Hz 1:12 1.96 sec
7Kg*2 50Hz 1:10 1.94 sec
60Hz 1:12 1.96 sec
8Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Compatible with
1 HP motors		 ATC Time Interval
For Cutter
4Kg*2 50Hz 1:10 1.94 sec
60Hz 1:12 1.96 sec
5Kg*2 50Hz 1:10 1.94 sec
60Hz 1:12 1.96 sec
6Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
7Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
8Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Compatible with
1 HP motors		 ATC Time Interval
For Cutter
4Kg*2 50Hz 1:12 2.33 sec
60Hz 1:12 1.96 sec
5Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
6Kg*2 50Hz 1.12 2.33 sec
60Hz 1:15 2.45 sec
7Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
8Kg*2 50Hz 1:15 2.91 sec
60Hz 1:15 2.45 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Compatible with
1 HP motors		 ATC Time Interval
For Cutter
4Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
5Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
6Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
7Kg*2 50Hz 1:15 2.91 sec
60Hz 1:15 2.45 sec
8Kg*2 50Hz 1:15 2.91 sec
60Hz 1:20 3.27 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Compatible with
1 HP motors		 ATC Time Interval
For Cutter
4Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
5Kg*2 50Hz 1:15 2.91 sec
60Hz 1:15 2.45 sec
6Kg*2 50Hz 1:15 2.91 sec
60Hz 1:20 3.27 sec
7Kg*2 50Hz 1:15 2.91 sec
60Hz 1:20 3.27 sec
8Kg*2 50Hz 1:15 2.91 sec
60Hz 1:20 3.27 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Compatible with
1 HP motors		 ATC Time Interval
For Cutter
4Kg*2 50Hz 1:15 2.91 sec
60Hz 1:15 2.45 sec
5Kg*2 50Hz 1:15 2.91 sec
60Hz 1:20 3.27 sec
6Kg*2 50Hz 1:15 2.91 sec
60Hz 1:20 3.27 sec
7Kg*2 50Hz 1:15 2.91 sec
60Hz 1:20 3.27 sec
8Kg*2 50Hz 1:15 2.91 sec
60Hz 1:20 3.27 sec
